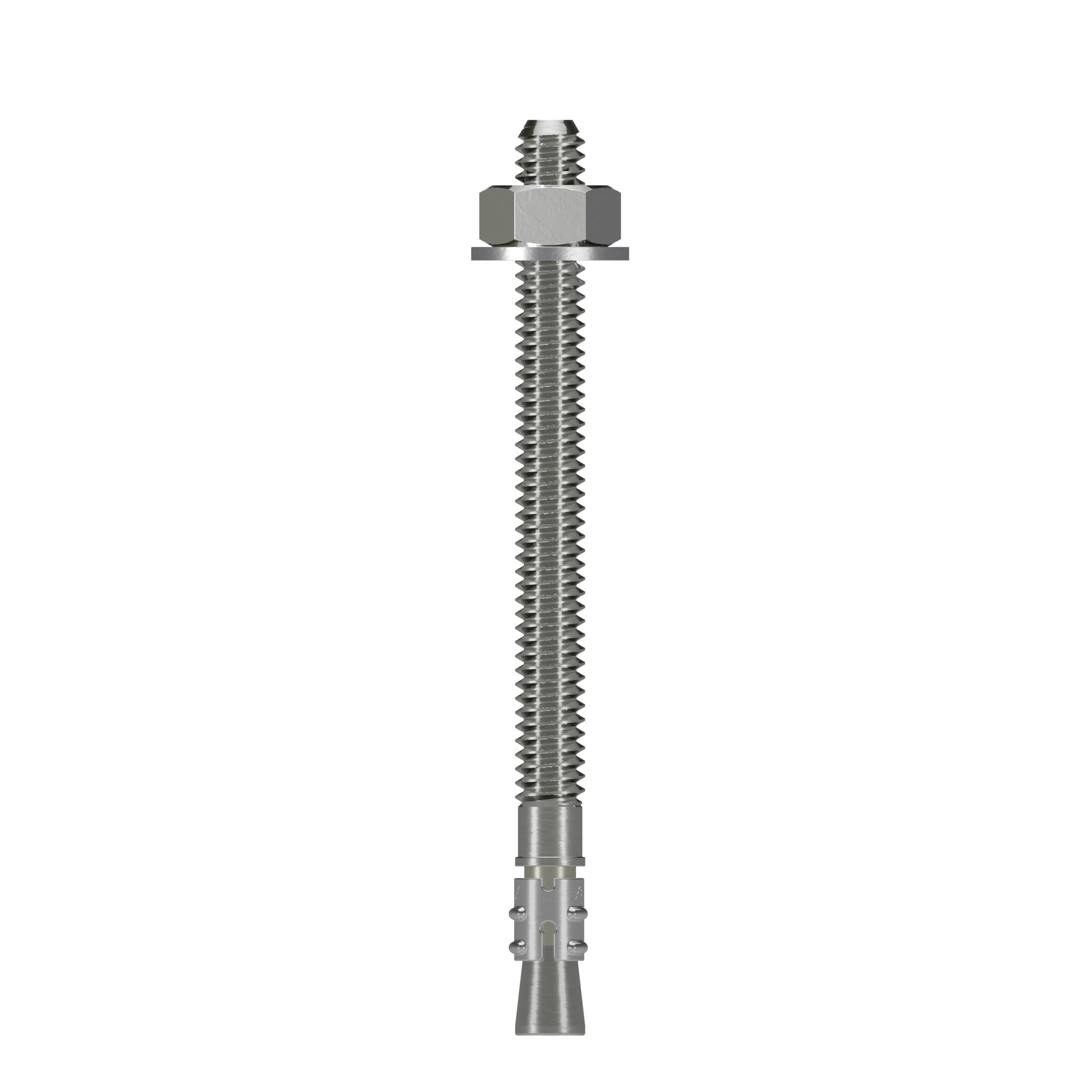

Simpson Strong-Tie STB2-758124SS Strong-Bolt 2 3/4 in. x 8-1/2 in. Type 304 Stainless-Steel Wedge Anchor

$20.15

Standard Shipping

Features:

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3-1/4 in., and lightweight concrete-over-steel deck thickness of 2-1/2 in. and 3-1/4 in.
  • Tested per ACI355.2 and AC193
Simpson Strong-tie STB2-758124SS Product Page

Building Relationships, Delivering Results

  • Check Mark Fast Shipping
  • Check Mark No Hassle Returns
  • Check Mark Secure Payments
  • Check Mark Family Owned and Operated
  • Check Mark Personal Bilingue

    Code listed for cracked and uncracked concrete, and masonry applications, the Simpson Strong-Tie Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 is available in carbon steel, Type 304 and Type 316 stainless steel.

    • Size: 3/4 in. x 8-1/2 in.
    • Made from Type 304 stainless steel
    • Size: 3/4 in. x 8-1/2 in.

    Warranty

    Limited warranty, available at www.strongtie.com/limited-warranties.

    Specifications
    Package Quantity 1
    Material Type 304 Stainless Steel
    Color None
    Length (in) 8 1/2
    Thread Length 6
    Diameter (in) 4-Mar
    Drill Bit Diameter (in) 4-Mar
    Anchor Body Component Material Type 304 Stainless Steel
    Clip Component Material Type 304 or Type 316 Stainless Steel
    Nut Component Material Type 304 Stainless Steel
    Washer Component Material Type 304 Stainless Steel
    ICC-ES Reports ESR-3037 (Concrete)|ESR-3037 (Concrete) – Spanish
    State Of Florida Approvals FL15730
    FM Approval FMExpanShield|FMExpanShield
    UL Approval VFXT.EX3605|VFXT.EX3605
    Hazmat NO
    UPC Per Each 707392000000
    Package Quantity 10
    Carton Quantity 20
    Carton UPC 10707400000000
    Pallet Quantity 2520
    Pallet UPC 50707400000000
    Weight 1.2 lbs
    Dimensions 1.469 × 1.469 × 8.56 in
    Brand

    Product Type

    MPN

    UPC Code
