TROWEL MACHINES

Only 37 hours used

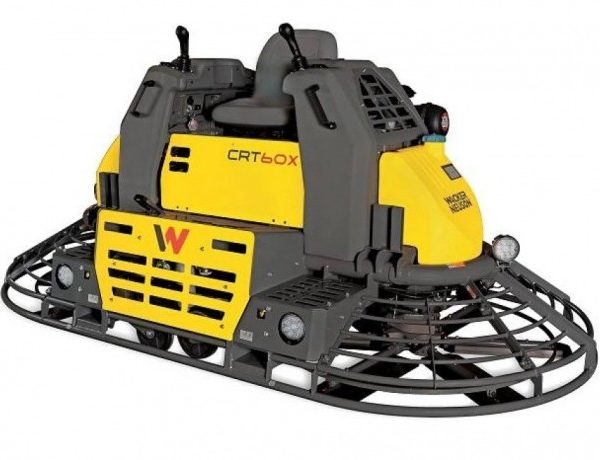

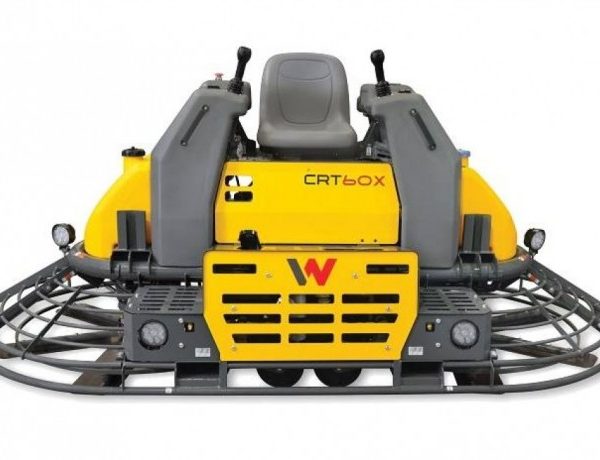

Ride-On Trowel Machine Specifications

• L x W x H Shipping: 130.5 x 67.5 x 65 in.
• L x W x H Operating: 127 x 65 x 57 in.
• Shipping weight: 2,970 lb.
• Operating weight: 2,720 lb.
• Troweling diameter: 59 in.
• Quantity of blades: 12
• Blades (Combination): 23 x 8 in.
• Blades (Finsh): 23 x 6 in.
• Blades (Float Pan Ø): 60 in.
• Pitch range: 0 – 25 °
• Rotor speed (min. / max.): 25/132 rpm
• Engine / Motor: Liquid-cooled, four cylinder, turbo-charged diesel
• Engine / Motor manufacturer: Kohler
• Displacement: 151.4 cu. in.
• Operating performance (SAE J1995): 74 hp
• RPM / speed: 2,600 rpm
• Engine oil: 9 US qt
• Fuel type: Diesel
• Fuel consumption: 3.3 US gal/h
• Fuel tank capacity: 12 US gal.
• Tank capacity Water: 12 US gal.
• Runtime: 3.6 h

Key Features

• Powerful Tier 4 final engine and heavy-duty enhanced hydraulic system provide industry leading torque
• Large display for enhanced diagnostics and operator feedback including fuel level, engine RPM, temperature, and pressure
• Structural forklift pockets allow user to lift the machine from either side and are integral to the structure adding strength and rigidity to the machine
• Gyro Assist and Cruise Control for increased operator performance and ergonomics
• High-output LED working lights increase visibility and life
