[100 Pack] Simpson Strong-Tie THDB25158RH Titen HD 1/4 in. x 1-5/8 in. Threaded Rod Hanger for 1/4-in. Rod

[100 Pack] Simpson Strong-Tie THDB25158RH Titen HD 1/4 in. x 1-5/8 in. Threaded Rod Hanger for 1/4-in. Rod

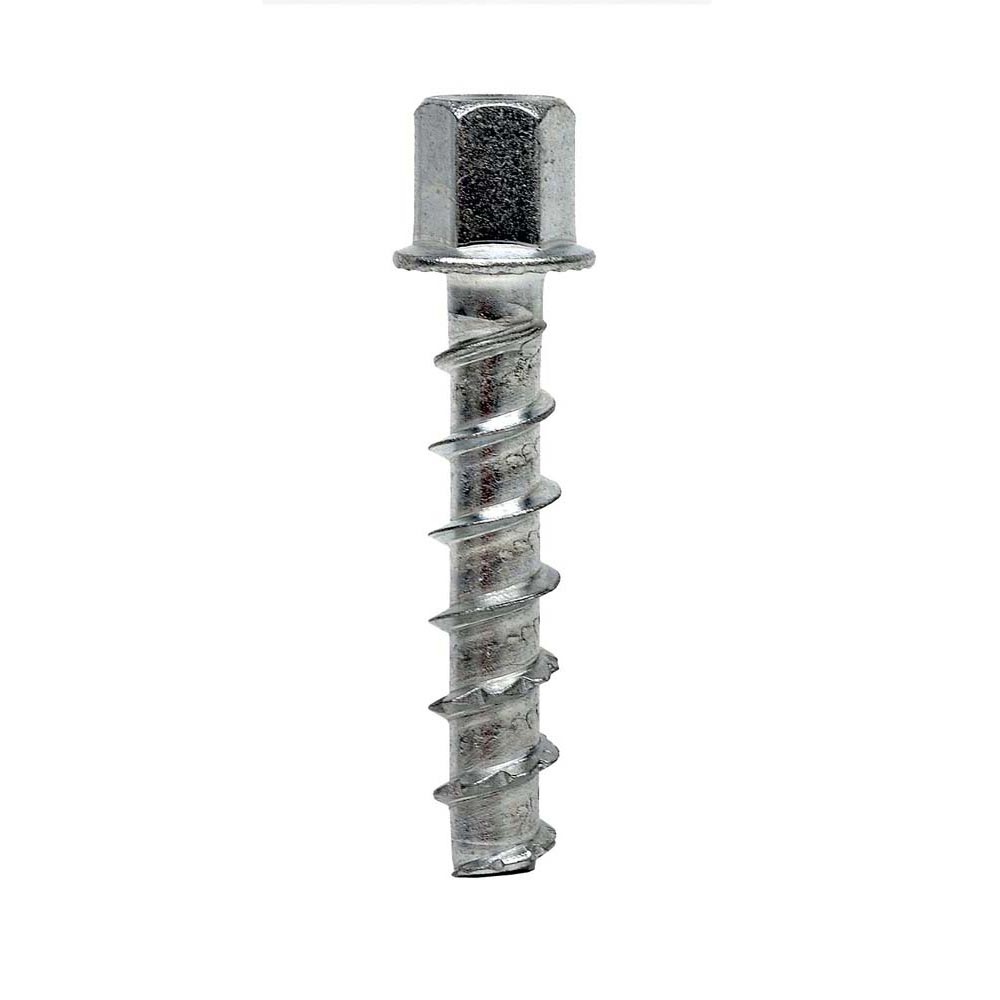

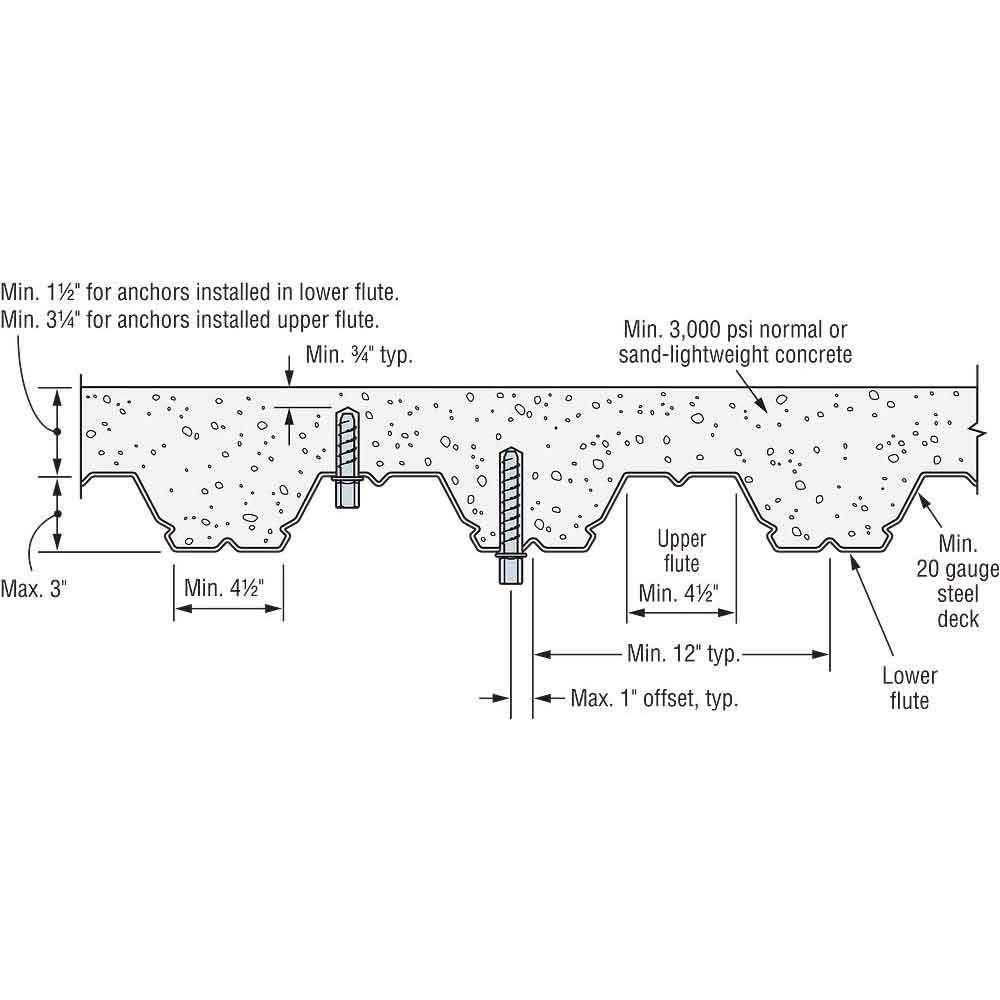

The Simpson Strong-Tie THDB25158RH Titen HD Threaded Rod Hanger is a high-strength screw anchor specifically designed for suspending threaded rods from concrete slabs, beams, or concrete-over-metal structures. It is an ideal solution for hanging pipes, cable trays, and other HVAC equipment. This anchor delivers low installation torque with no secondary setting required, providing efficient and reliable performance. Tested for exceptional holding power in both cracked and uncracked concrete, this rod hanger ensures industry-leading strength and stability—even under seismic loading conditions.

Key Features

• Unique thread design undercuts concrete to maximize load capacity.
• Serrated cutting teeth and optimized thread design enable quick and effortless anchoring.
• Heat-treated tip enhances cutting efficiency while maintaining ductility or long-term performance.

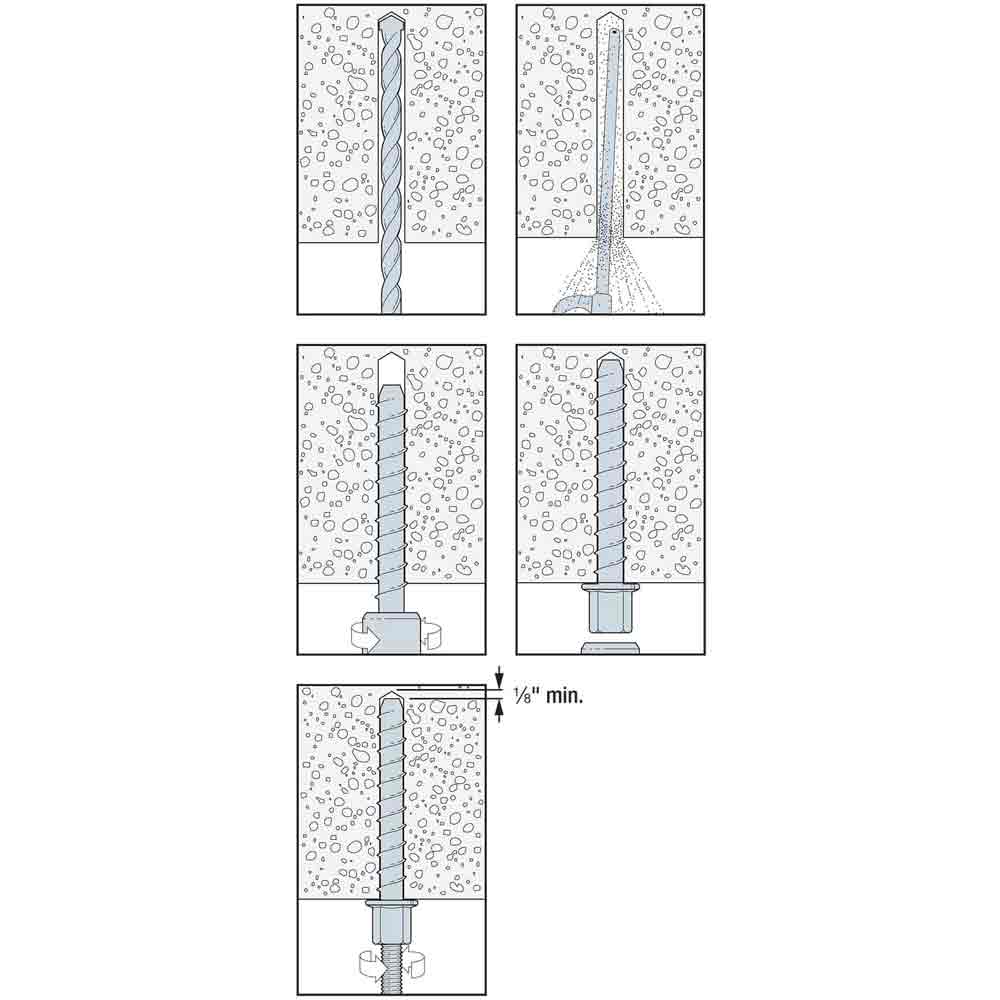

• Installs easily using a rotary hammer or hammer drill with standard ANSI drill bits-no special tools needed.
• Ideal for suspending electrical conduits, HVAC components, and plumbing installations.
