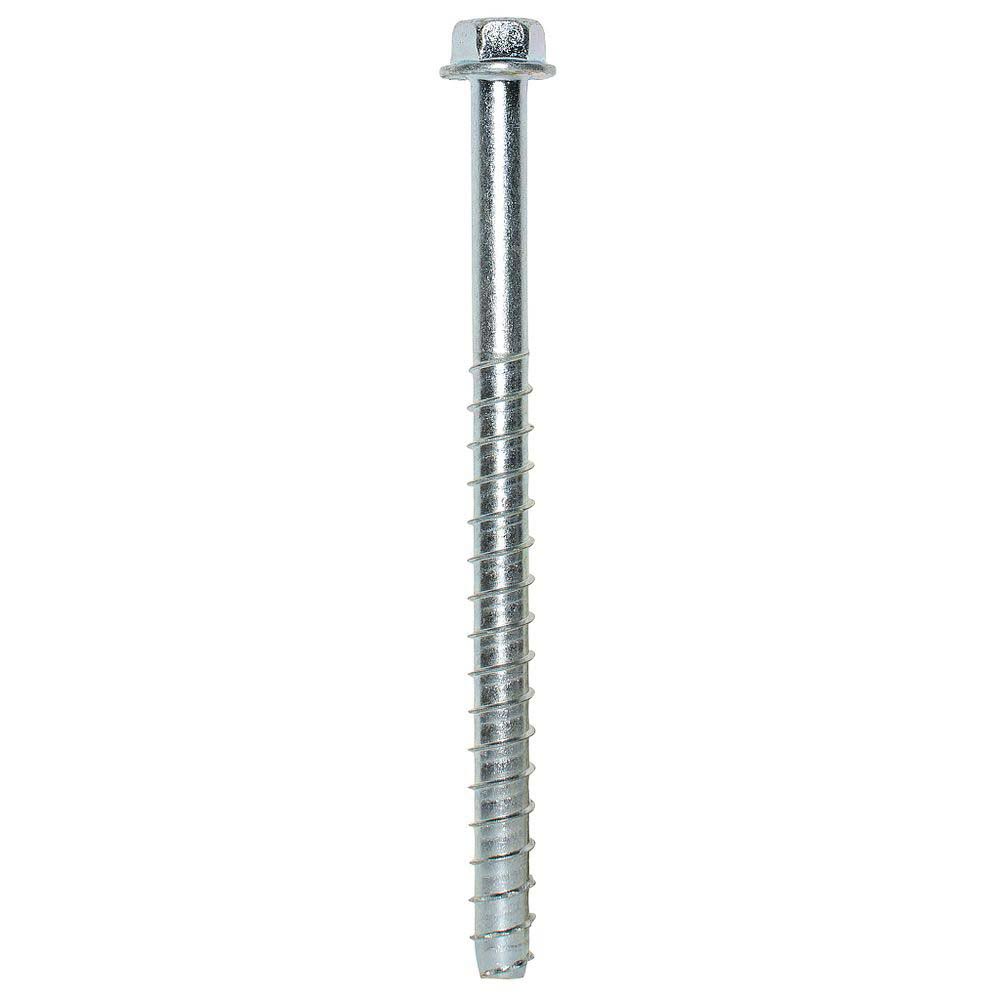

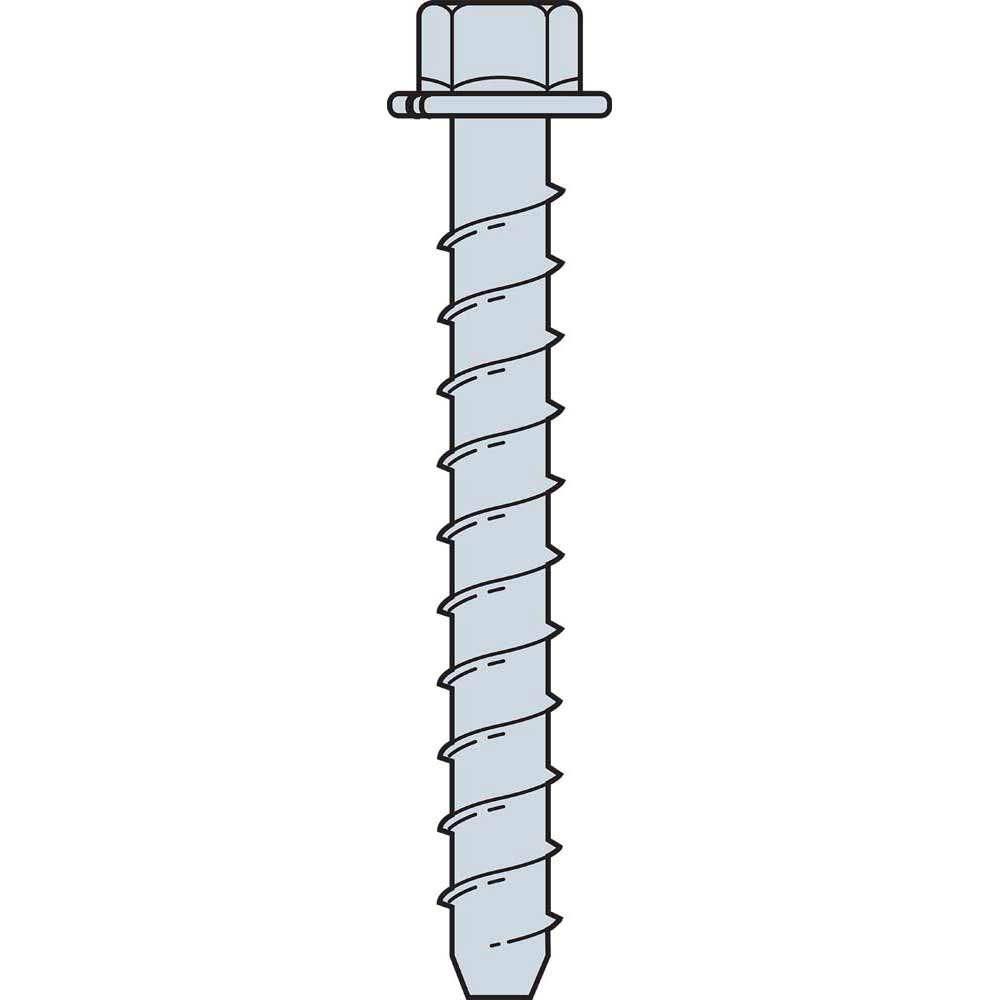

[20 Pack] Simpson Strong-Tie THD50800H Titen HD 1/2 in. x 8 in. Heavy-Duty Screw Anchor
$92.31
Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits

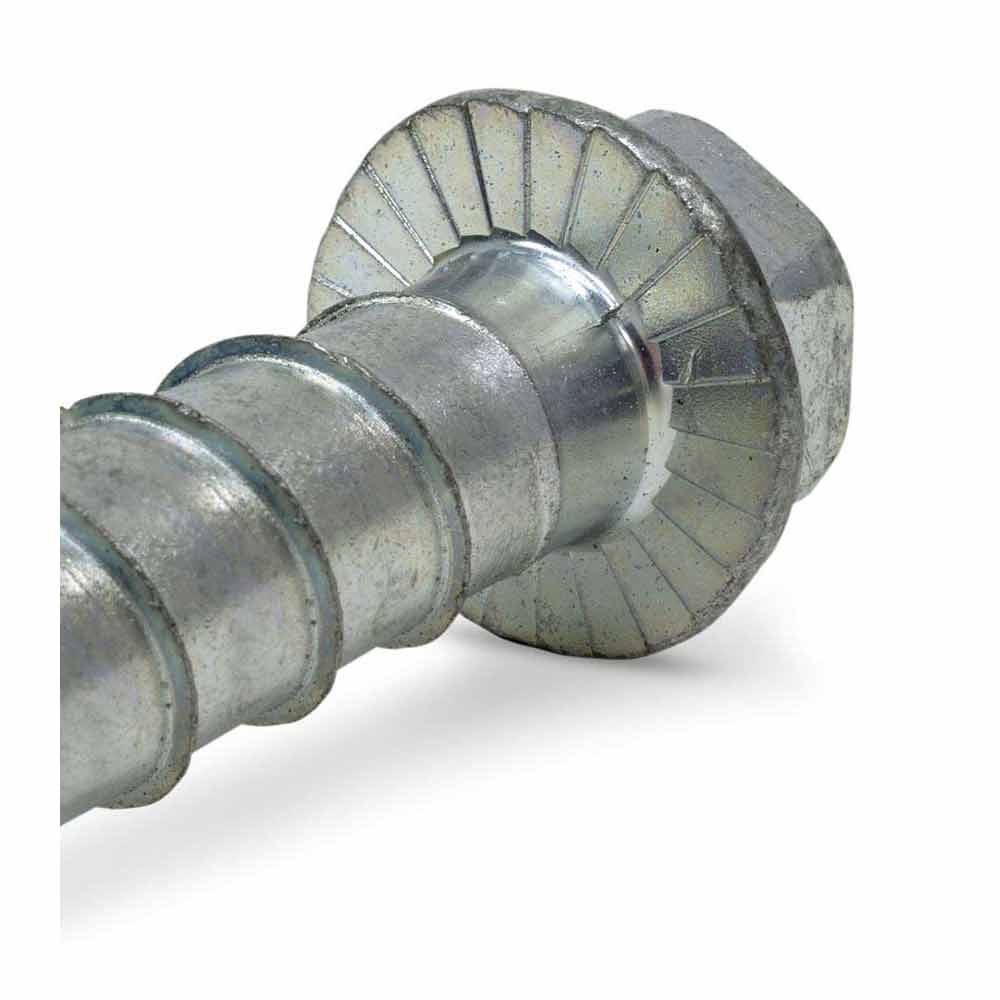

- Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
- Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
- Reuse of the anchor will not achieve listed loads and is not recommended
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue

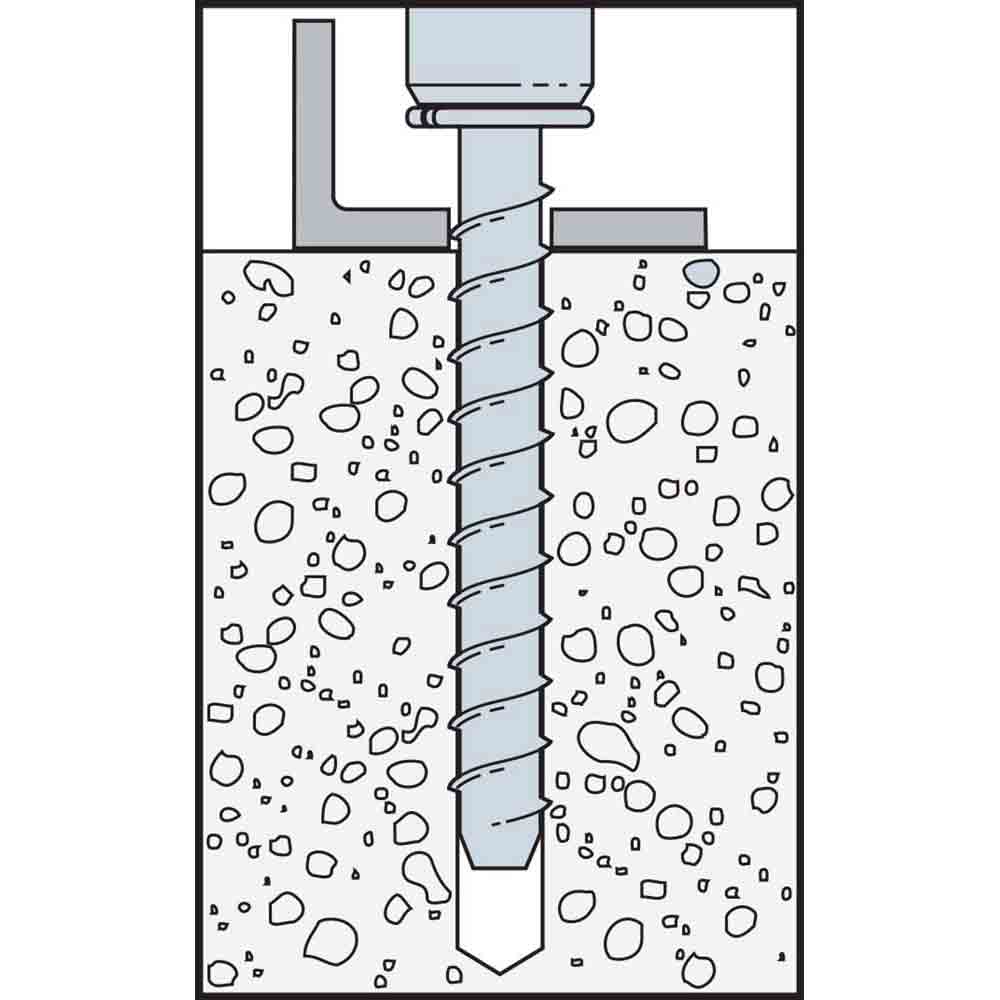

The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
| Weight | 12 lbs |
|---|---|
| Dimensions | 13 × 4 × 4 in |
| Brand | Simpson Strong-Tie |
| MPN | |
| Product Type | |
| Coating Material | |
| Wrench Size | 3/4 |
| UPC Code | |
| Package Quantity | |
| Length (in) | |
| Diameter (in) |
