Simpson Strong-Tie LSTA18 1-1/4 in. x 18 in. 20-Gauge Galvanized Strap Tie
$1.35
Features:
- LSTA18 is load-rated, precut strap designed for quick installation and optimal performance
- Designed to resist wind and seismic forces
- Floor-to-floor clear span application
- Width: 1-1/4 in.
- Length: 18 in.
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue

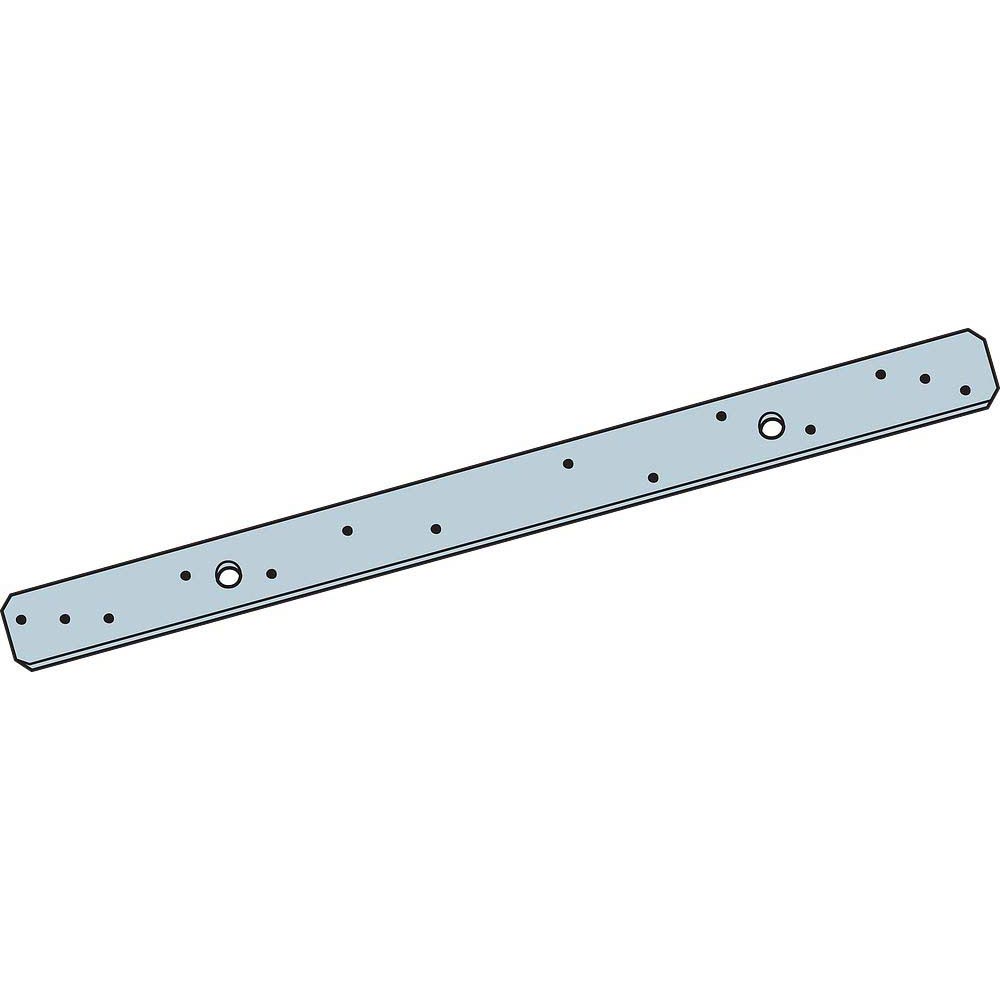

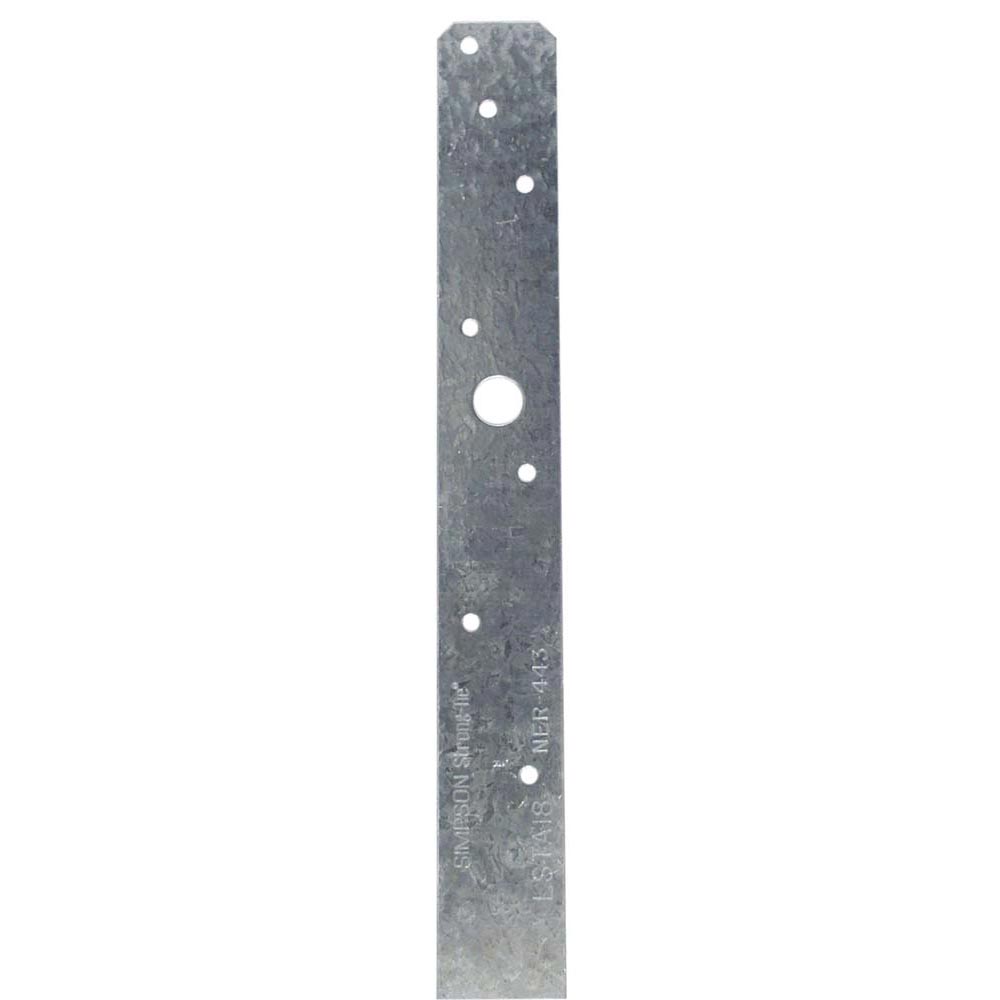

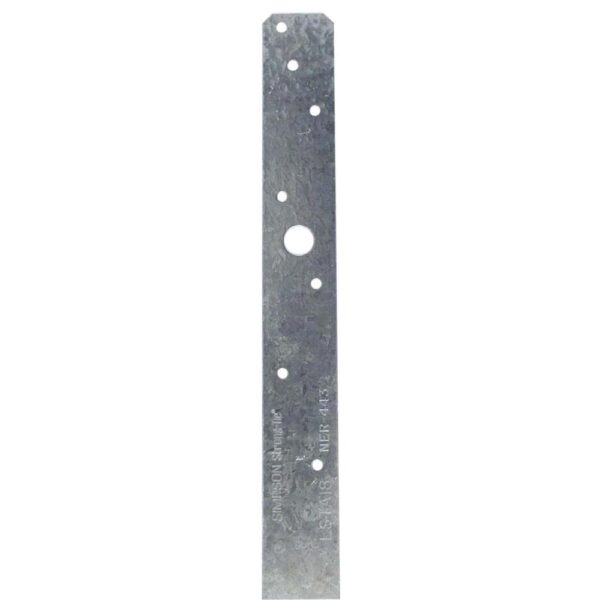

Simpson Strong-Tie LSTA18 LSTA 1-1/4 in. x 18 in. 20-Gauge Galvanized Strap Tie
The Simpson Strong-Tie LSTA18 is a light-duty strap tie engineered to provide reliable tension load resistance in wood-to-wood connections. At 18 inches long and 1-1/4 inches wide, this strap tie is ideal for reinforcing framing members in wind and seismic conditions. Designed for use along the edge of 2x lumber, the LSTA18 features a staggered nail pattern that reduces the risk of wood splitting while maintaining structural integrity. Precut and load-rated, it’s a go-to solution for floor-to-floor clear span applications or any project requiring dependable lateral reinforcement.
Key Features
- Ensures fast installation with consistent performance.

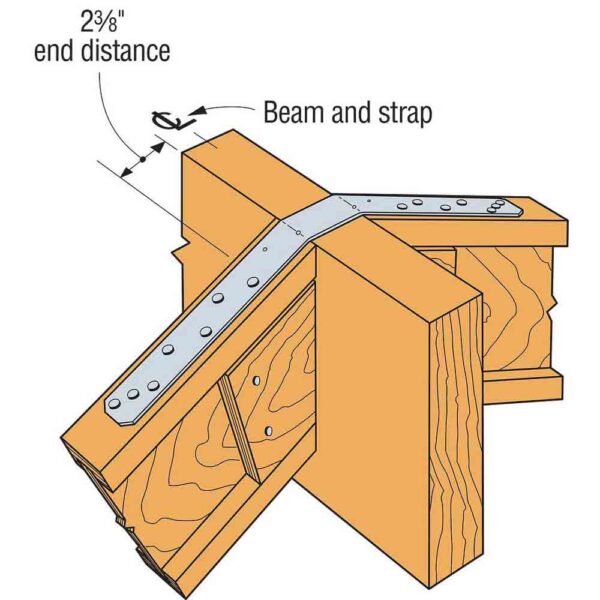

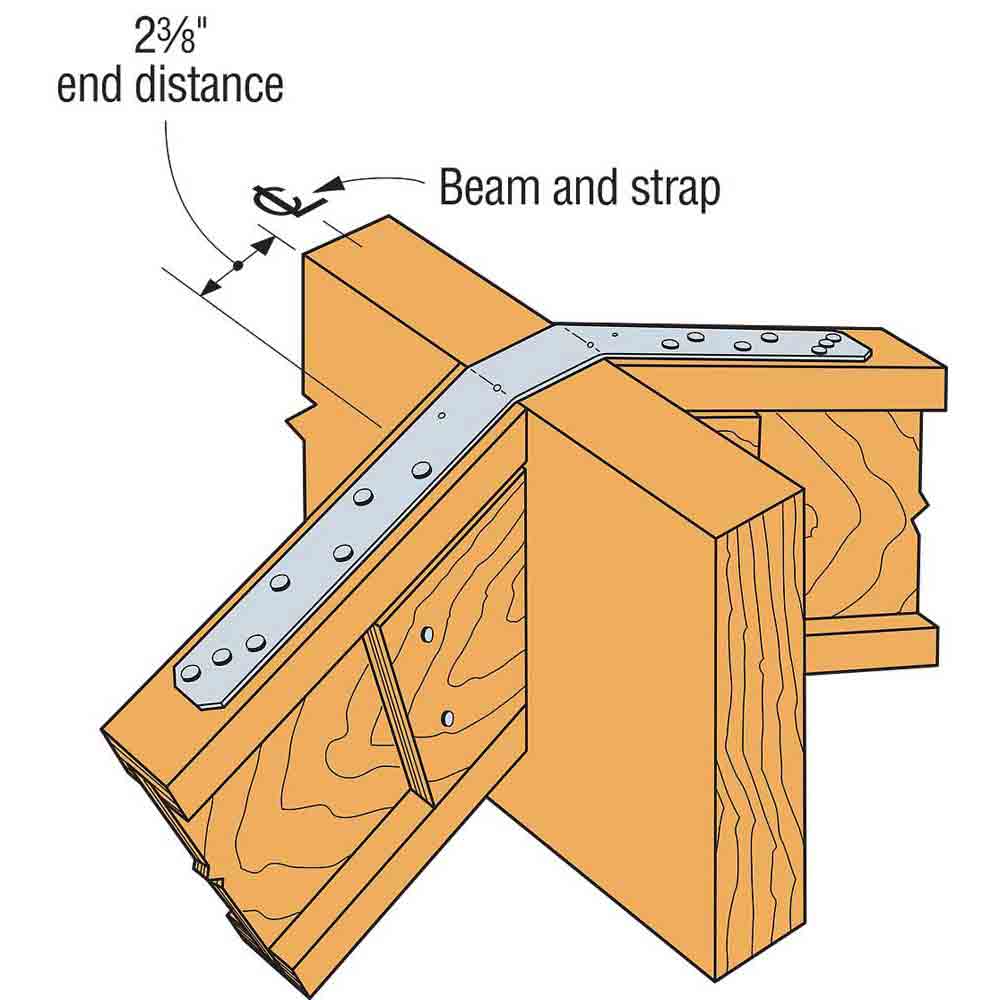

- Ideal for installation along the edge for 2x members.
- Designed to resist uplift and lateral forces.
- Staggered design helps protect wood from splitting.

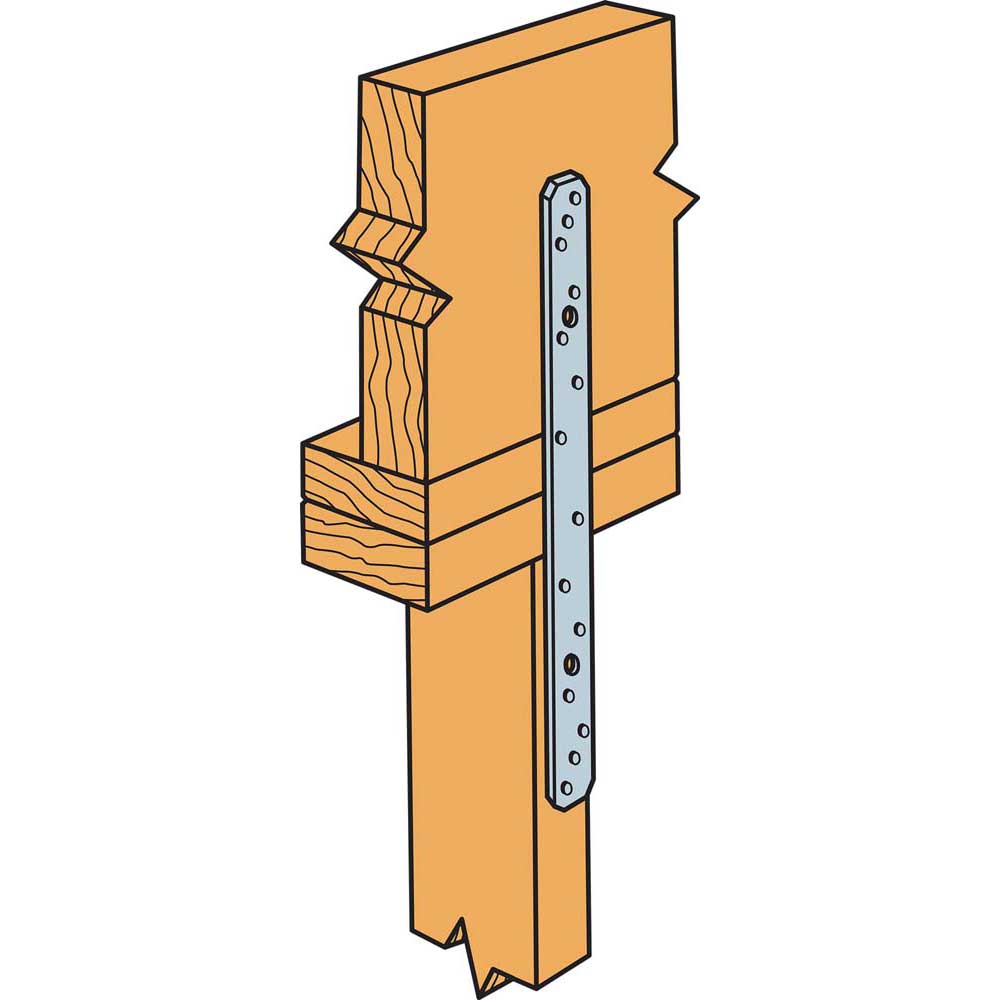

- Perfect for tension tie-downs and floor-to-floor spans.
- Made from 20-gauge steel.
- Galvanized (G90) for extra corrosion resistance.
Warranty
Limited warranty, available at www.strongtie.com/limited-warranties.
| Specifications | |
|---|---|
| Assembled Width (in) | 1.25 |
| Assembled Height (in) | 18 |
| Assembled Depth (in) | 0.035 |
| Package Quantity | 1 |
| Coating | Zinc Galvanized, G90 |
| Color | None |
| Gauge | 20 |
| Thickness (mm) | 33 |
| IAPMO UES Reports | ER-124 (CFS)|ER-102 (Index) |
| ICC-ES Reports | ESR-3096|ESR-2105|ESR-2523 (Index) |
| State Of Florida Approvals | FL13872 |
| Hazmat | NO |
| UPC Per Each | 044315667206 |
| Package Quantity | 1 |
| Carton Quantity | 50 |
| Carton UPC | 044315667220 |
| Pallet Quantity | 9100 |
| Pallet UPC | 60044315667208 |
| Weight | .22 lbs |
|---|---|
| Dimensions | 0.035 × 1.25 × 18 in |
| Brand | Simpson Strong-Tie |
